"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

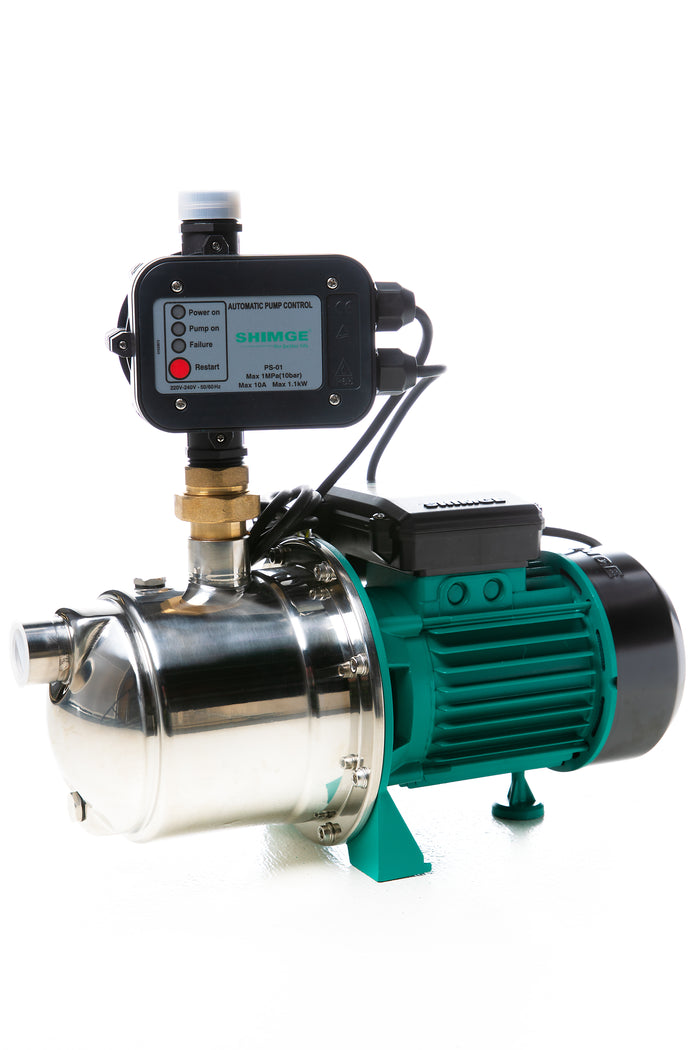

The Shimge stainless steel self-priming surface jet pump is suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. It is also widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.

FEATURES

304 stainless steel pressed tensile pump body and cover
Hydraulic optimization design, excellent performance
Nozzle, guide vane and the impeller PPO engineering plastics
Complete in specifications, meet drinking water standards
Max. Working pressure: 6bar / 87psi
Output power: 0.75 kw
Max. head:40 m
Max Flow: 85 L/min
Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water
Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc
2 Year Warranty


APPLICATION LIMITS

Suction head up to 9m
Liquid temperature up to +40℃
Ambient temperature up to +40℃
Max. Working pressure: 6bar / 87 psi
Voltage fluctuation should not exceed 10% of rated value
pH: 6.5 to 8.5


MOTOR

Single-Phase 240V/50Hz
Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
Protection: IP44
Insulation: Class B


IN THE BOX

1 x Jet Pump
1 x User's Manual
